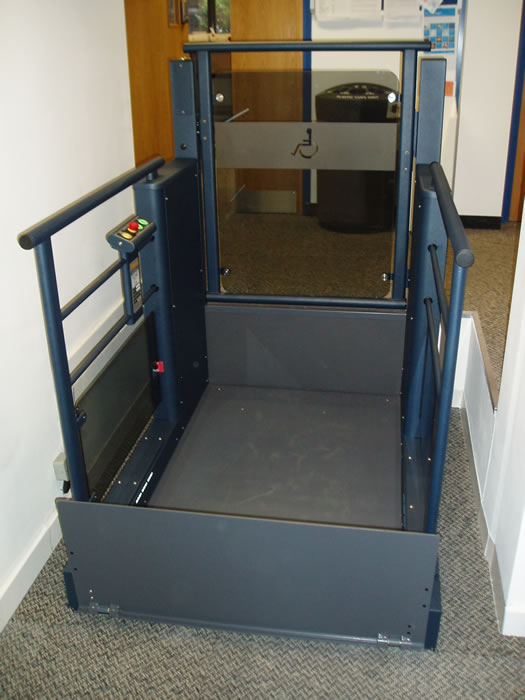

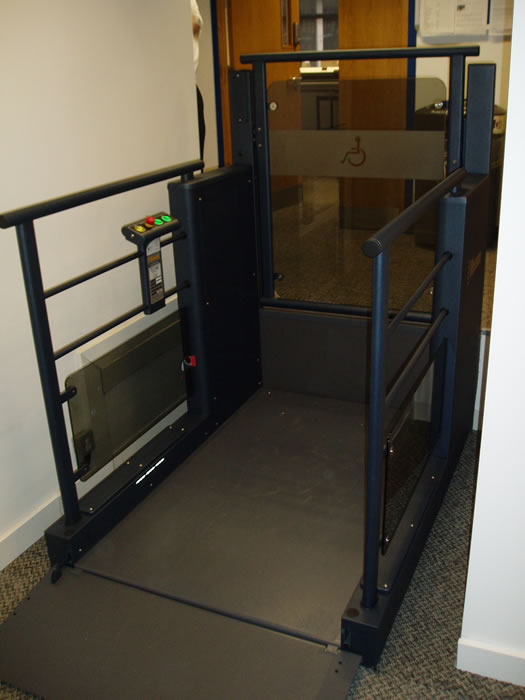

Optimum 350 - open style platform liftThe Optimum 350 Open Style Platform Lift - 0.25m to 1m travel

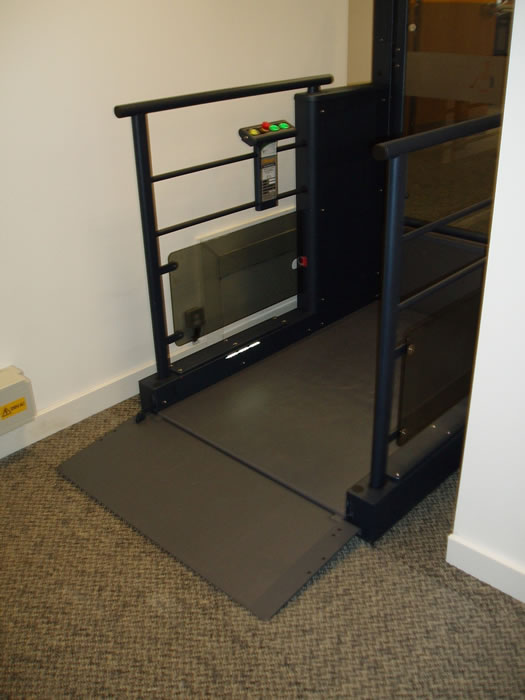

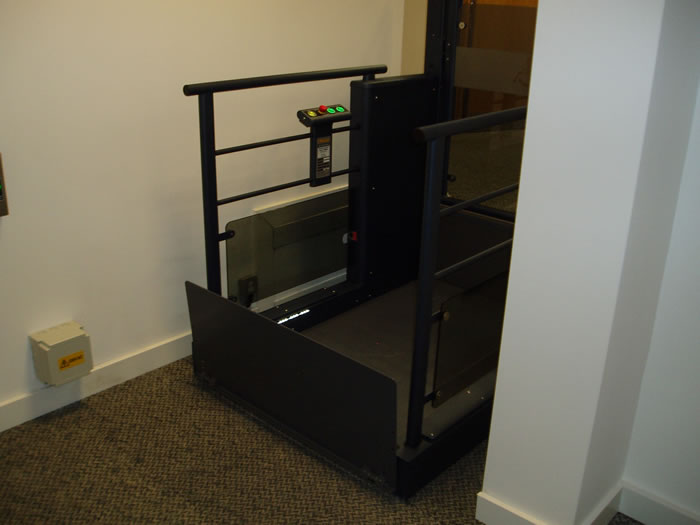

The Optimum 350 is a high quality and reliable hydraulic platform lift designed to work internally or externally for heights from 25cm to 1m. It comes complete with it own self supporting structure and has a side opening gate at the upper level. Optimum 350 has a safety ramp fitted to the platform that will automatically fold up when the lift moves. It is also available with an optional lower gate.


pdfPDF Data Sheet | Image 1pdfPDF architect drawingpdfOptimum 350 NBS Specification

Case Studies

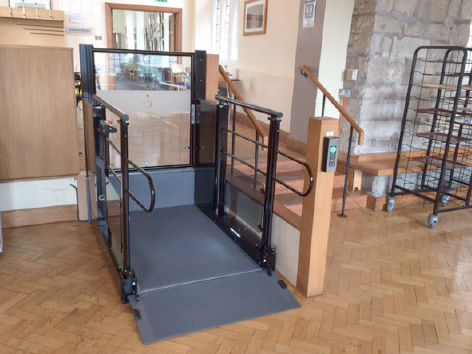

We installed an Optimum 350 for the King's Manor


  • Platform Sizes - 3 models available
  • Travel – from 250mm to 1000mm
  • Ramp- Automatic power fold style
  • Capacity – 300kg

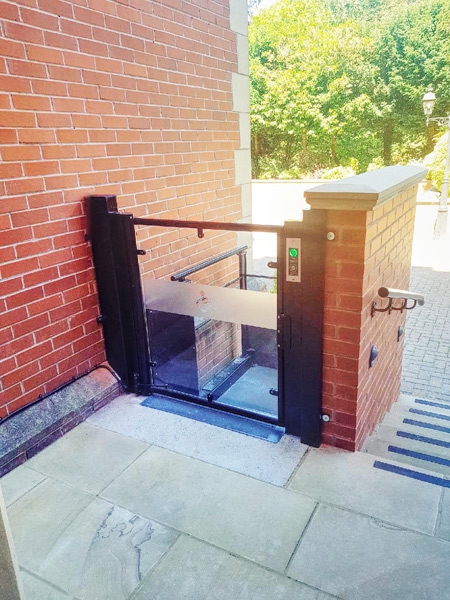

  • Gate – Hinged at the upper level
  • Travel Speed – 20mm/s
  • Colour - Bleu 700 Sable
  • 5 year anti corrosion warranty
  • 240v electrical supply
  • Emergency raise and lower facility
  • Post mounted push controls
  • Arrival Gong and alarm
  • Tactile Buttons

Available Sizes

Model Platform Size Footprint
350-800 1450x800mm 1945x1004mm
350-900 1450x900mm 1945x1104mm
350-1100 1450x1100mm 1945x1304mm
